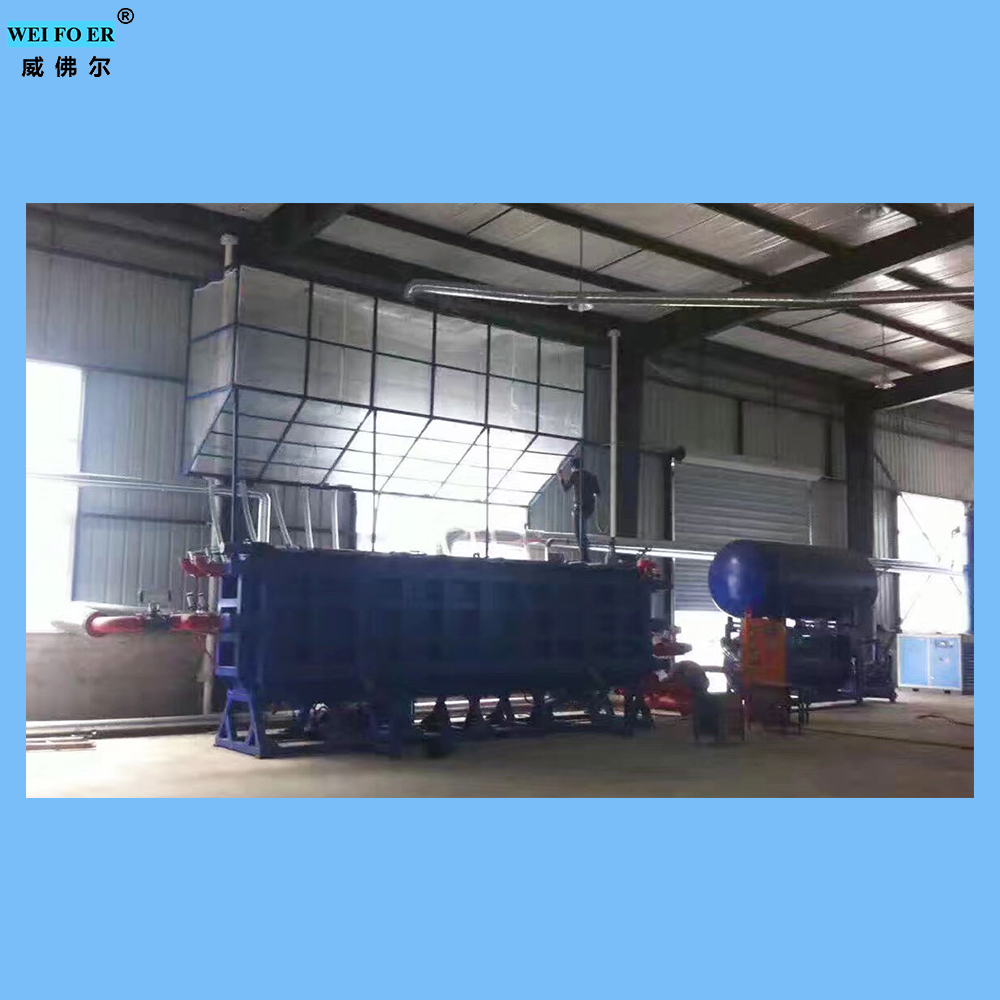

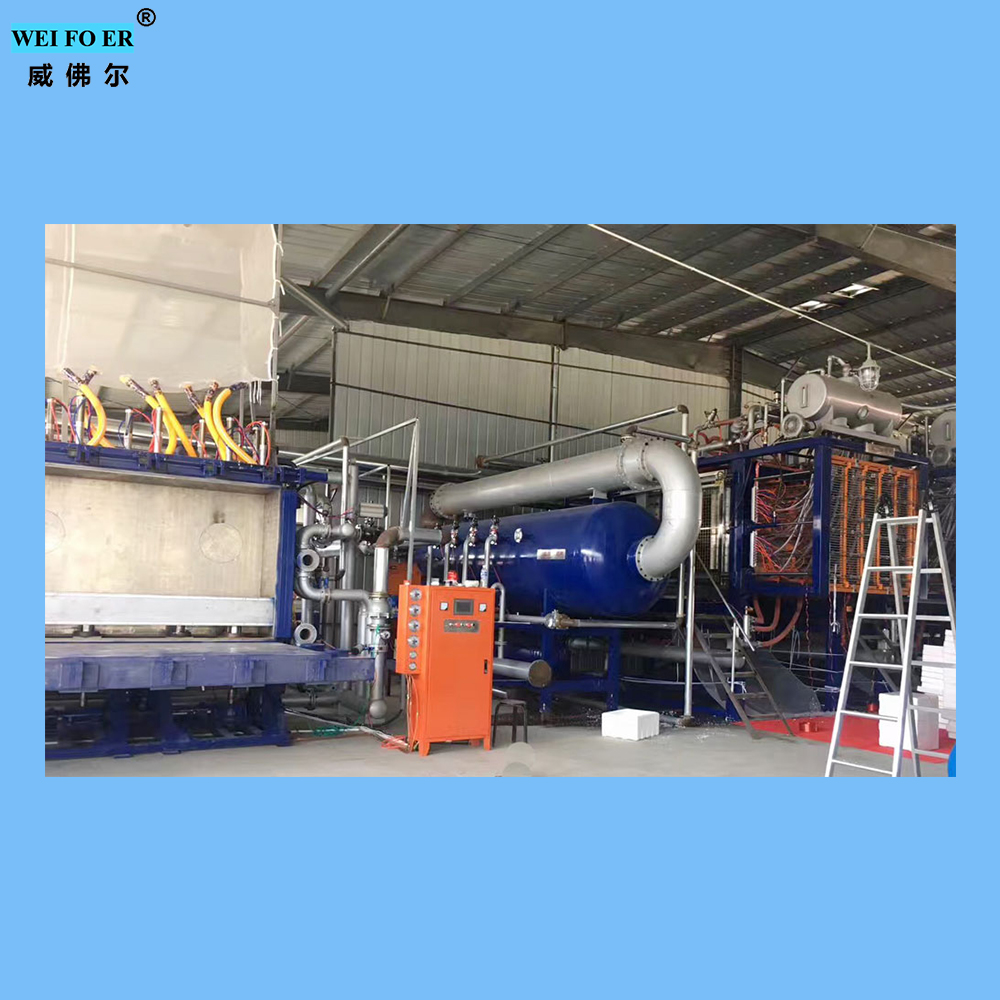

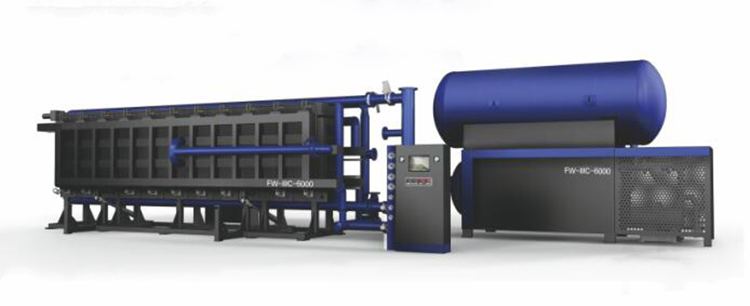

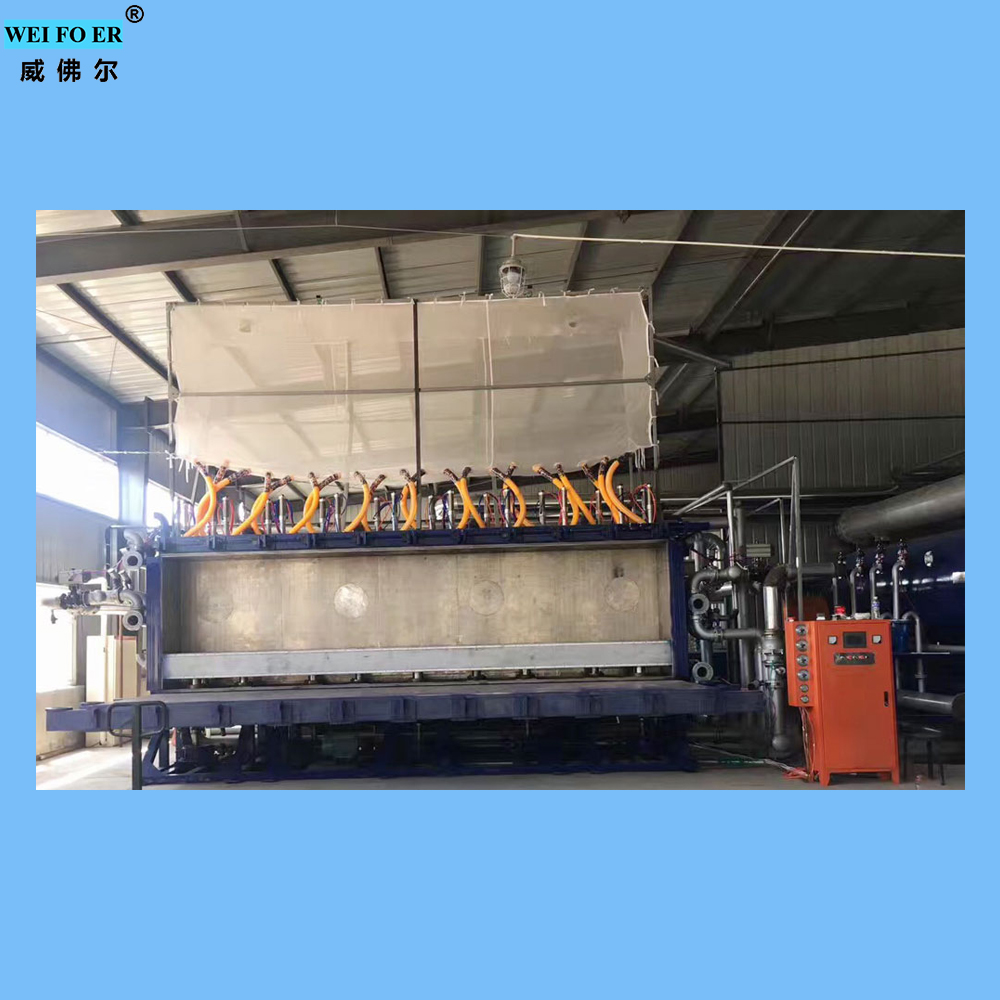

Weifoer high density eps foam board making machine

1. solid steel construction with aluminum coated frame, processed by high temperature annealing,

heat treatment.

2. Highly efficient vacuum cooling system, along with condensation device, leads to faster cycle time.

3. Unique design of piping layout, combination of steam inlets ensures sufficient, even, stable

steam pressure, thus resulting in shorter cycle time.

4. The new developed hydraulic drive concept ensures the opening and closing of the moulding  machine in a total and even way, fast, strong, and energy saving.

5. Highly efficient material filling system, faster and sufficient.

6. Low moisture contents, better energy saving, shorted cycle time, perfect stabilization of performance.

7. Modern communication interface/Machine control.

8. Multiple safety protection.

9. Conveyor and weighing system is optional.


  • Model:FW-B6000-Z                          Brand:WEIFOERPr

  • oduct DescriptionProduct Description










ModelFW-B2000ZFW-B4000ZFW-B6000ZFW-B8000Z
Mould Cavity SizeL2050mm4080mm6120mm8140mm
W630-1035mm630-1035mm630-1035mm630-1035mm
H1240mm1240mm1240mm1240mm
Installed PowerHydraulic Motor5.5ke
Feeding Motor4kw
vacuum pump7.5kw*27.5kw*211kw*211kw*2
Induced Draft Fan7.5kw7.5kw11kw11kw
Total Installed Power323242.542.5
SteamEntryDN150DN150DN150×2DN150×2
Pressure0.6-0.8 Mpa
Consumption20-40kg/cycle40-80kg/cycle60-120kg/cycle80-160kg/cycle
Compressed AirEntryDN65
Pressure0.5-0.7Mpa
Consumption1-1.5m³/cycle1.5-2m³/cycle1.8-2.3m³/cycle2-2.5m³/cycle
DrainageExhaust PortDN150DN150DN200DN200
Fan OutletDN150DN150DN200DN200
Cycle Time2-10min/cycle
Overall SizeL7500mm9500mm1300015000
W2500mm2500mm2500mm2500mm
H2400mm2400mm2400mm2400mm
Machine Weight 11T13T17T19T




.jpg




Company


Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry",  a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.

Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

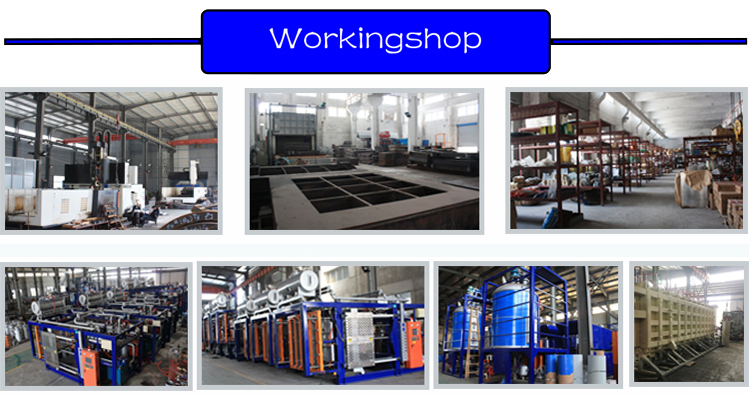

workshop show


Packaging & Shipping


Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

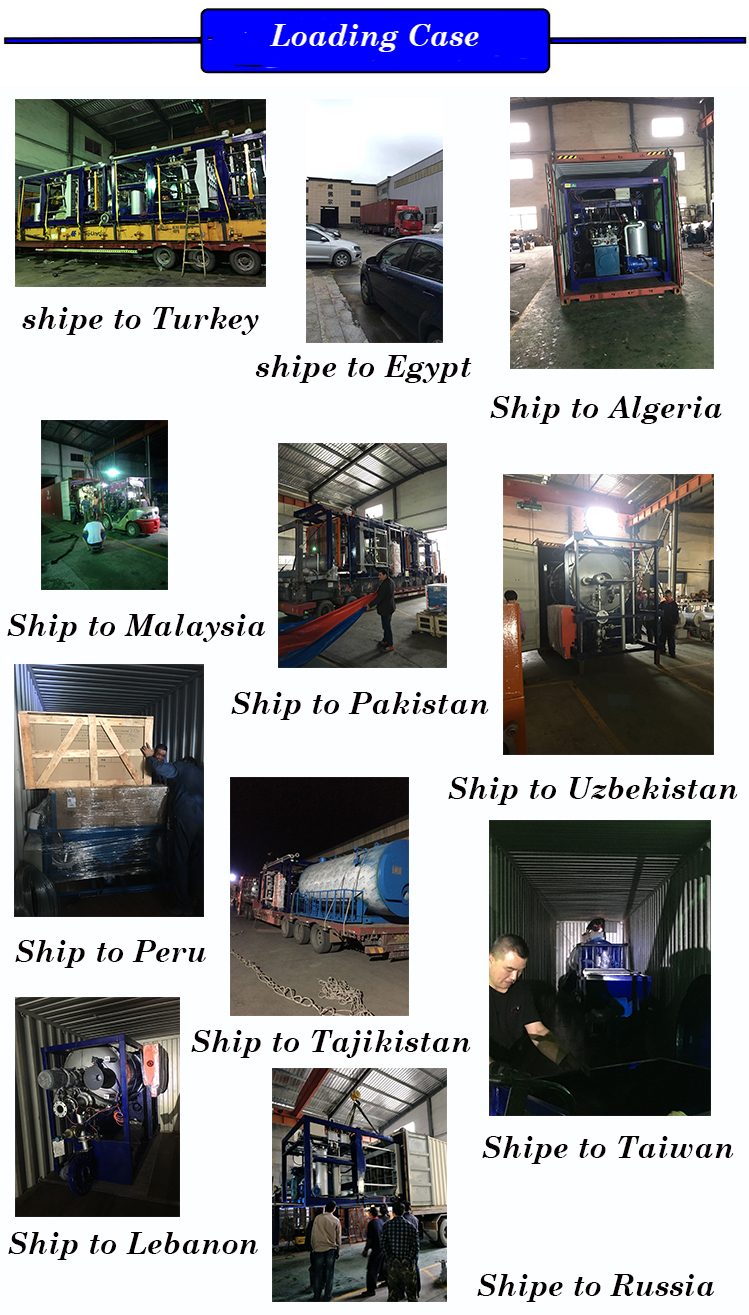

Loading case




We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
