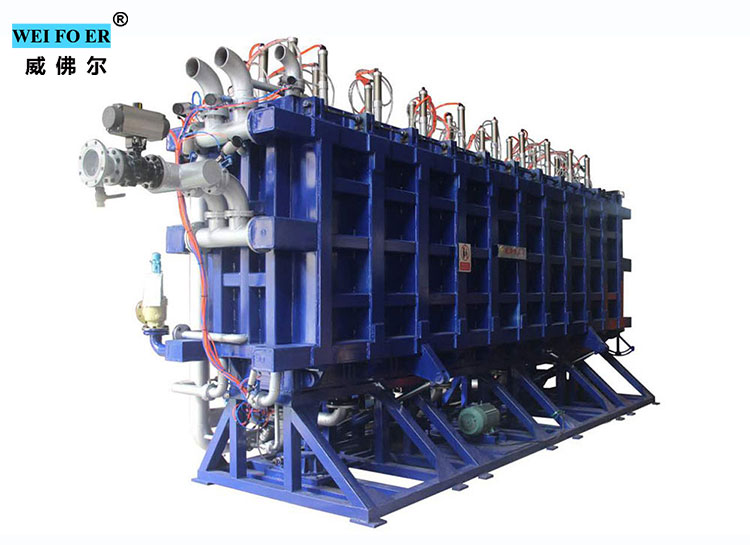

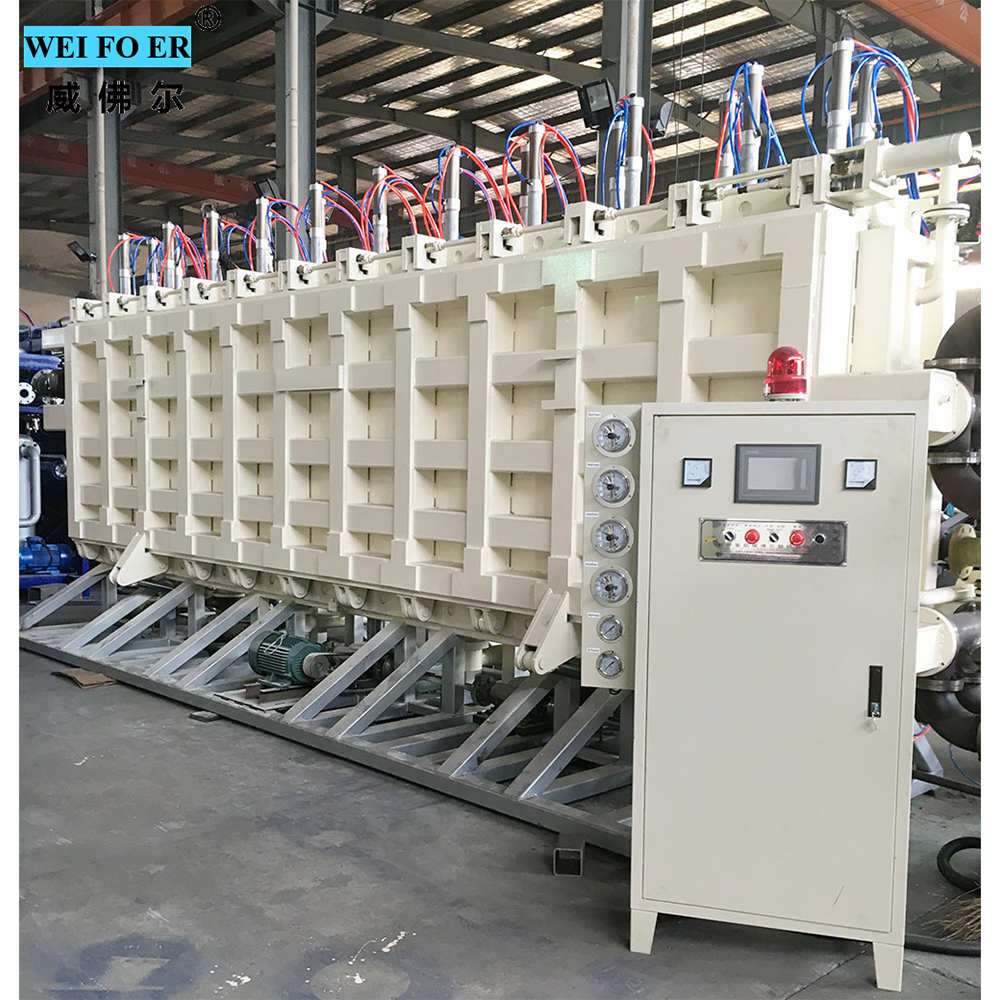

Weifoer eps foam insulation blocks molding machine

  • Model:FW-B2000F                      Brand:WEIFOER                          Code:8477409000Product DescriptionPruct Description












SubjectsNameAutomatic EPS Block Molding Machine with Air Cooling
ModelFW-B2000FFW-B4000FFW-B6000F
Mould Cavity SizeL2050mm4080mm6120mm
W630-1035mm630-1035mm630-1035mm
H1240mm1240mm1240mm
Height Adjustable------
Installed PowerHydraulic Moter5.5kw5.5kw5.5kw
Feeding Motor4kw4kw4kw
Lift Up and Down Motor------
Induced Draft Fan7.5kw7.5kw11kw
SteamEntryDN150DN150DN150×2
Pressure0.6-0.8Mpa0.6-0.8Mpa

0.6-0.8Mpa

Consumption20-40kg/cycle40-80kg/cycle60-120kg/cycle
Compressed AirEntryDN65DN65DN65
Pressure0.5-0.7Mpa0.5-0.7Mpa0.5-0.7Mpa
Consumption1-1.5m³/cycle1.5-2m³/cycle1.8-2.3m³/cycle
DrainageExhaust PortDN150DN150DN200
Fan OutletDN150DN150DN200
Cycle Time2-10min/cycle2-10min/cycle2-10min/cycle
Overall SizeL4000mm6000mm9500mm
W2500mm2500mm2500mm
H2400mm2400mm2400mm
Machine Weight8.5T10.5T14.5T














Company

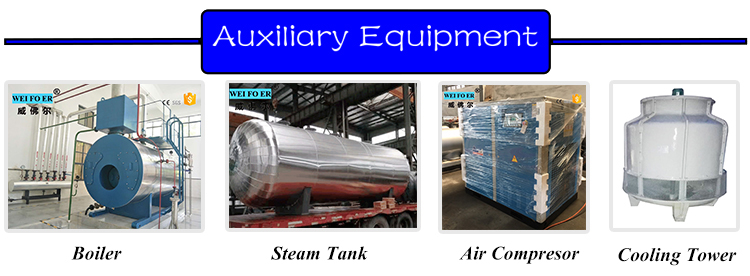

Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry",  a professional eps machine manufacturer, since 1984. Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

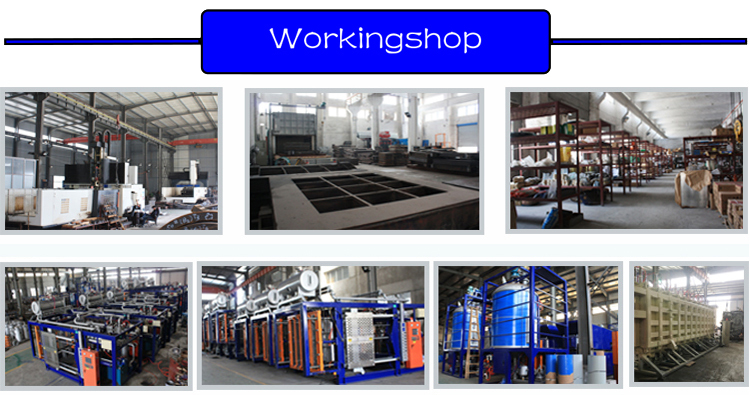

workshop show

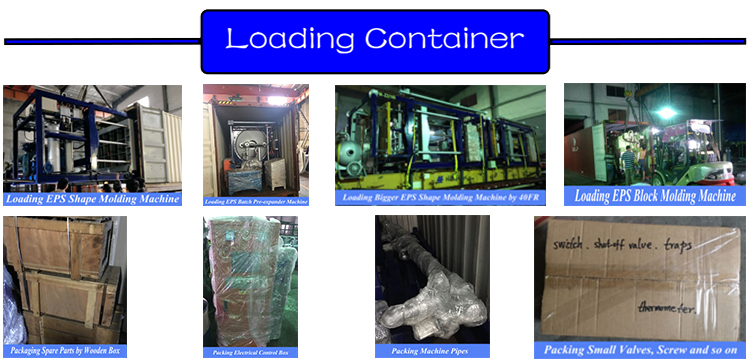

Packaging & Shipping


Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

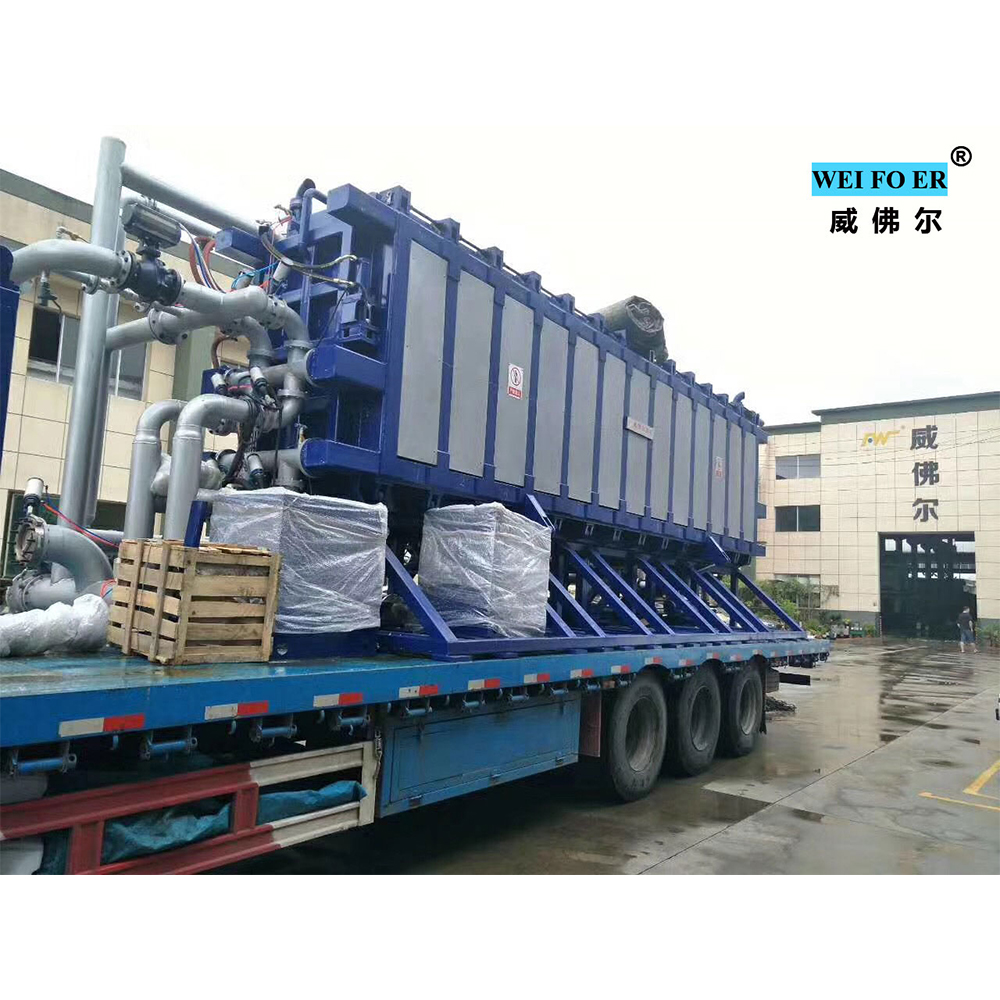

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

Certification
