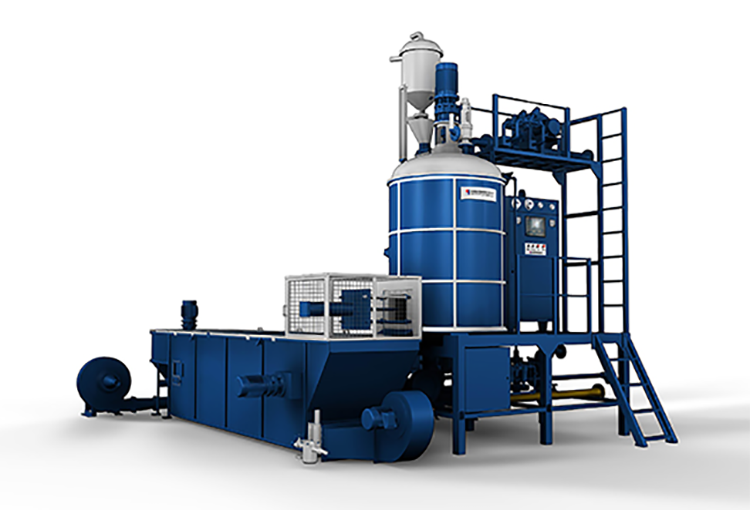

Weifoer eps batch expander machine

 Including expansion body, dryer bed, automatic feeding system, sieving devices, weighing system, blower, etc.

 Main advantage:

 1. Fully automatic and intelligent prodcution;

 2. Human-machine cooperation, controlled by PLC and color touch screen, easy to operate;

 3. Accurate density, high output and energy-saving

 4. Smooth operation and stable



 Function Description:

 1. This machine accept PLC and color touch screen control, automatic feeding, automatic control barrel temperature and pressure, automatic sensor testing material;

 2. The barrel is made by stainless steel, realize constant pressure foaming;

 3. Control barrel temperature and pressure by Japanese imported pressure reducing valve and Germany imported proportional valve;

 4. Using famous brand electrical components and pneumatic components, to ensure the machine running stable and smooth operation;

 5. Using the photoelectric to control the expansion material volume,making the expansion density uniform;

 6. Automatic discharge the material, by using fan to blow material, increase the discharge speed;


Pduct Description




Main advantage:

1. Fully automatic and intelligent prodcution;

2. Human-machine cooperation, controlled by PLC and color touch screen, easy to operate;

3. Accurate density, high output and energy-saving

4. Smooth operation and stable


SubjectsBatch Pre-expander Machine
Model   FW-YF1100-1FW-YF1500-1
ChamberDiameterØ1100mmØ1500mm
Height1500mm2200mm
Volume0.95m³3m³
Expansion RateFirst Time Expansion12-30kg/m³12-20kg/m³
Density Tolerance≤±3%≤±3%
Cycle Time≤120s/cycle≤120s/cycle
SteamEntryDN40DN50
Pressure0.4-0.6Mpa0.4-0.6Mpa
Consumption3.5-7kg/cycle6-9kg/cycle
Compressed AirEntryDN40DN50
Pressure0.4-0.6Mpa0.4-0.6Mpa
Consumption0.5-0.6m³/cycle0.6-0.7m³/cycle
ExhaustUpperDN100DN150
LowerDN80DN100
Throughput12g/l (kg/h)≥340≥633
15g/l (kg/h)≥420≥790
20g/l (kg/h)≥570≥1200
25g/l (kg/h)≥710--
30g/l (kg/h)≥710--
Material Conveying Port200mm200mm
PowerSpindle Motor4kw7.5kw
Discharge Fan1.5kw2.2kw
Exhaust Fan1.5kw2.2kw
Vacuum Pump5.5kw5.5kw
Drying Fan3kw4kw
Material Conveying Fan4kw7.5kw
Feeding and Mixing Motor0.75kw0.75kw
Crushing Motor0.55kw0.55kw
Total Installed Power20.8kw30.2kw
Overall DimensionL5600mm6000mm
W3100mm3700mm
H4500mm5400mm
Machine Weight3000kg4000kg




 a---EPS pre-expander: it is used to expand the eps raw material to foamed beads;
