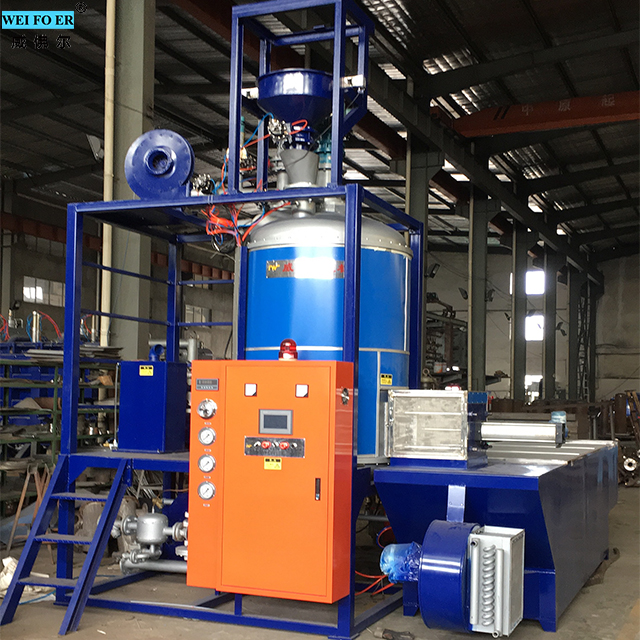

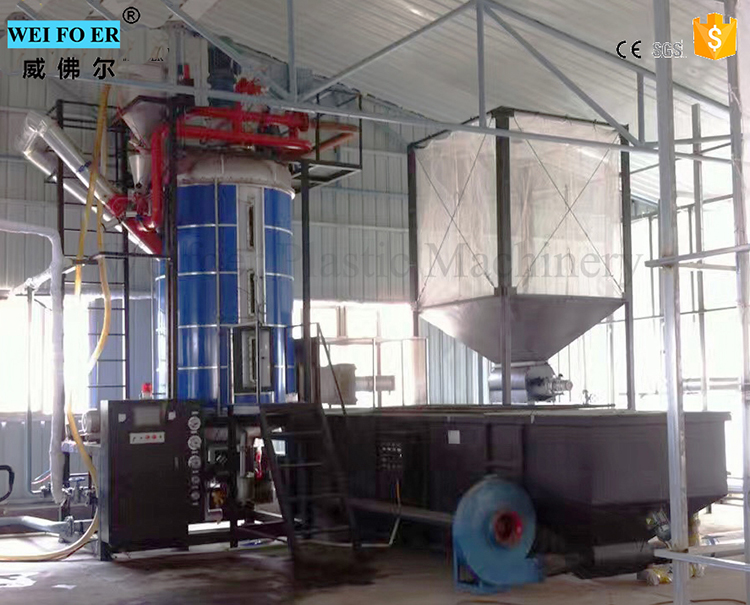

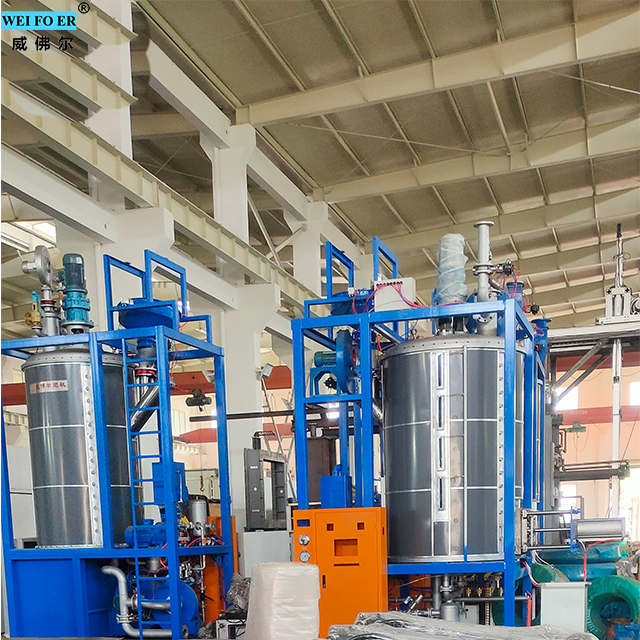

Weifoer CE Certificate eps plastic styrofoam balls foaming expandable polystyrene beads pre-expander machine

Including expansion body, dryer bed, automatic feeding system, sieving devices, weighing system, blower, etc.

Main advantage:

1. Fully automatic and intelligent prodcution;

2. Human-machine cooperation, controlled by PLC and color touch screen, easy to operate;

3. Accurate density, high output and energy-saving

4. Smooth operation and stable

Function Description:

1. This machine accept PLC and color touch screen control, automatic feeding, automatic control barrel temperature and pressure, automatic sensor testing material;

2. The barrel is made by stainless steel, realize constant pressure foaming;

3. Control barrel temperature and pressure by Japanese imported pressure reducing valve and Germany imported proportional valve;

4. Using famous brand electrical components and pneumatic components, to ensure the machine running stable and smooth operation;

5. Using the photoelectric to control the expansion material volume,making the expansion density uniform;

6. Automatic discharge the material, by using fan to blow material, increase the discharge speed;

Model:FW-YF1500-2 Brand:WEIFOERProduct Description

Product Description

B.Main technical data

Iterm		FW-YF1500-2	FW-YF1600-2
Chamber size	Dimension (mm)	Φ1500	Φ1600
Chamber size	High (mm)	2200	2200
Effective volume (m3)		3	4
Expansion rate	Second expansion (kg/m3)	4---6	4---6
	First back (kg/m3)	8---12	8---12
	First expansion (kg/m3)	12---20	12---20
Density tolerance %		≤±3	≤±3
Expansion cycle (s/cycle)		≤120	≤120
Steam	Entry (DN)	50	50
	Entry pressure (Mpa)	0.4---0.6	0.4---6
	Consumption (kg/cycle)	6---9	7---12
Air	Entry (DN)	40	40
	Entry pressure (Mpa)	0.4---0.6	0.4---0.6
	Consumption (m3/cycle)	0.6---0.7	0.7---0.8
Exhaust	Upper exhaust (DN)	100	100
	Lower exhaust (DN)	100	100
	Fan outlet (DN)	100	100
Output	4g/l (kg/h)	≥280	≥420
	6g/l (kg/h)	≥420	≥625
	8g/l (kg/h)	≥560	≥835
	12g/l (kg/h)	≥633	≥1200
	15g/l (kg/h)	≥790	≥1200
	20g/l (kg/h)	≥1200	≥1200
Feed port (mm)		200	200
Installed power (kw)		34	34
Outline dimension	Length (mm)	6000	6000
	Width (mm)	3700	4200
	Height (mm)	5400	5400
Weight (T)		4.5	5.0

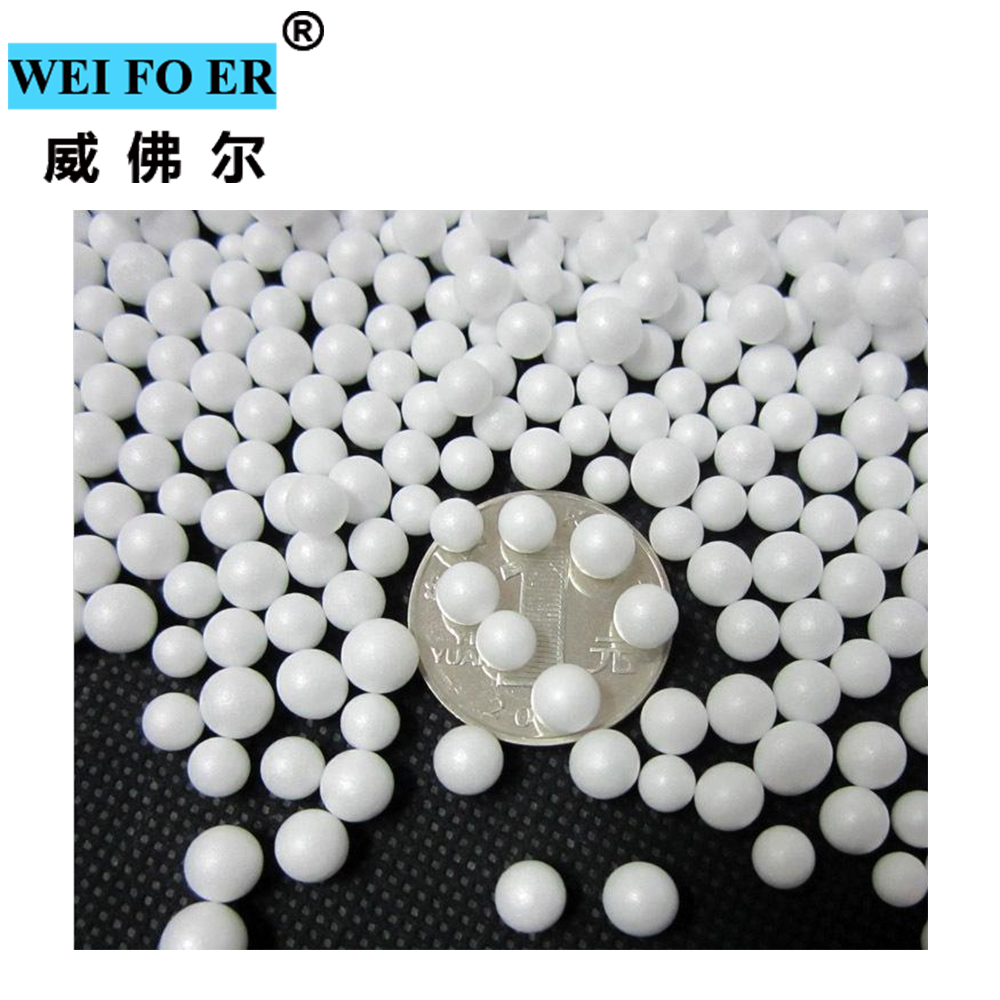

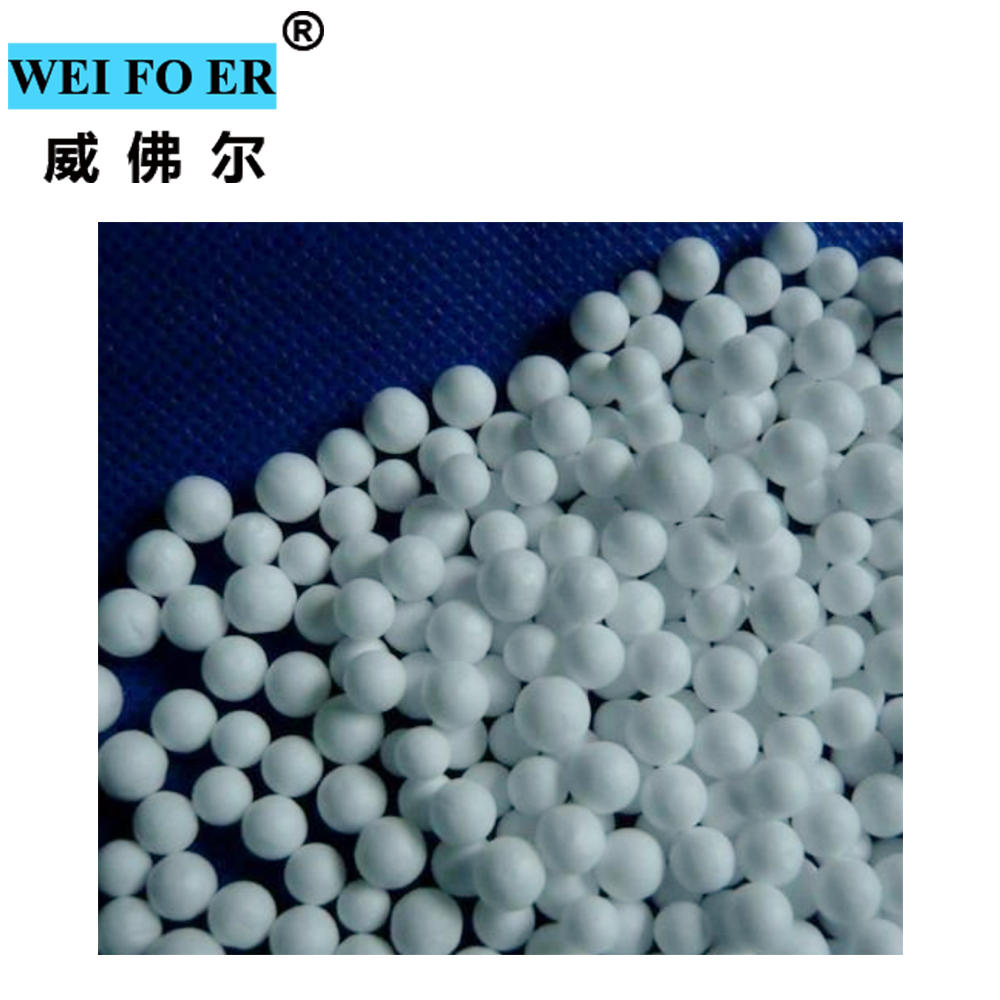

a---EPS pre-expander: it is used to expand the eps raw material to foamed beads; by second expansion, getting the lower density material and making

the light eps foam block.

Company

Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry", a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.

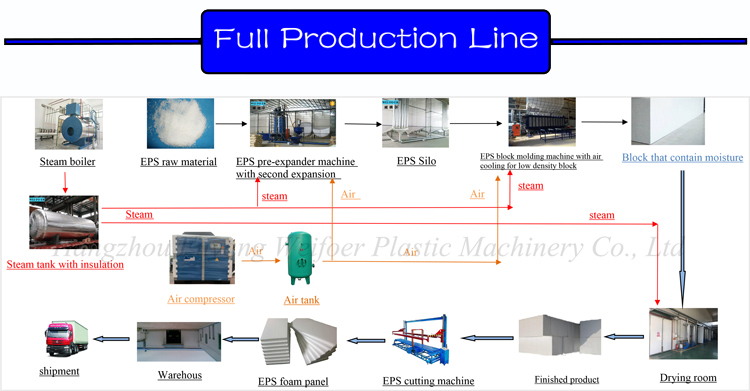

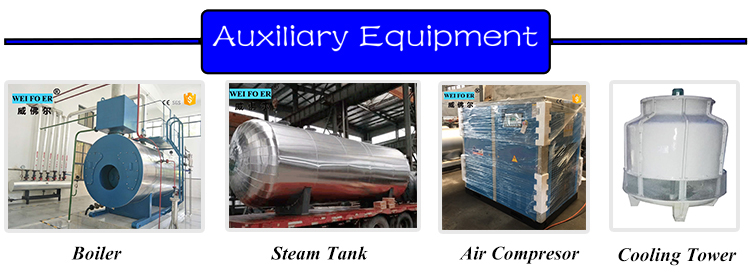

Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

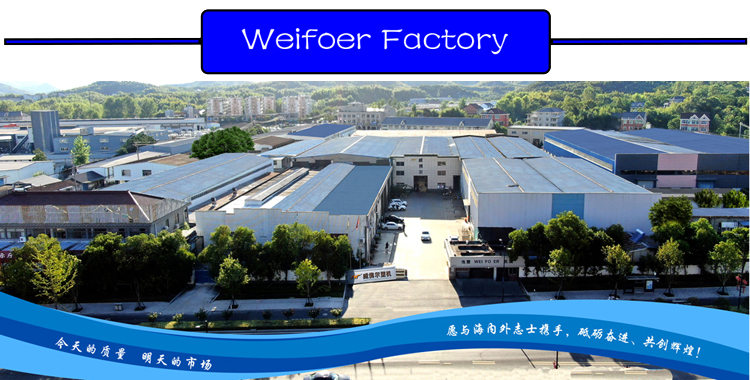

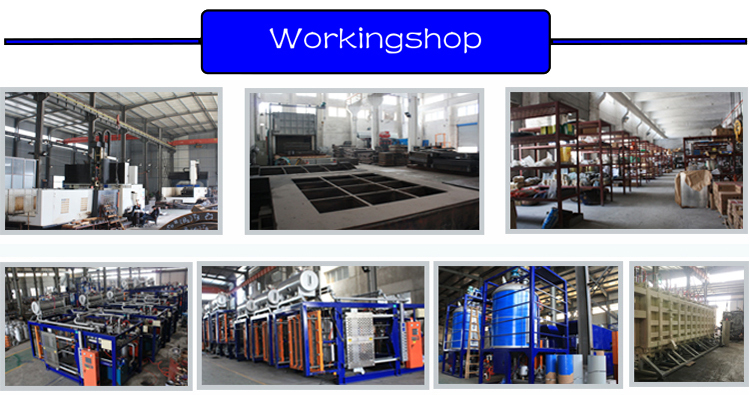

workshop show

Packaging & Shipping

Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

Loading case

We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
