Touch Screen decoration eps foam Cornice molding Machine

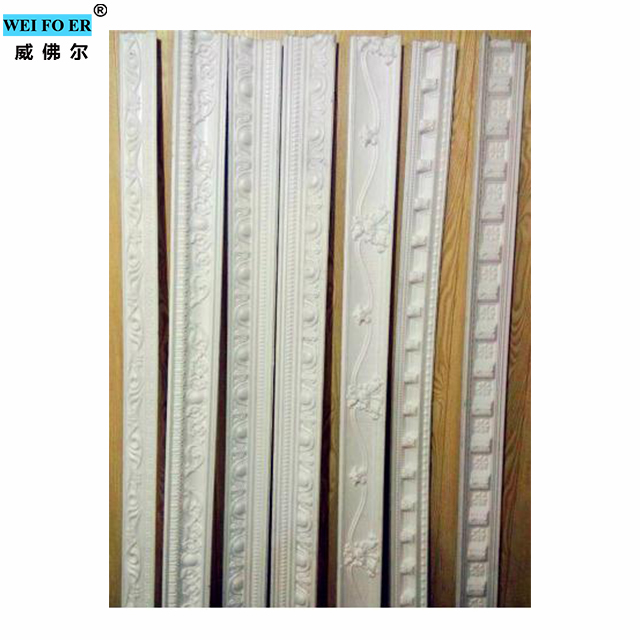

This type machine, model:FW-Z2216F is special used for making eps foam cornice

Product Description




SubjectsUnitFW-Z2216F
Outline of mouldmm2200×1600
Max. foam product sizemm2030×1430×400
Rear window sizemm2050×1450
Steam systemMain pipe pressurekg/cm²5-6

Inlet size

mmDN100
Mould inlet/1.5 inch*8pcs
Control type/Angle valve
Air SystemMain pipe pressuremmDN80*2pcs
Inlet pressurekg/cm²5-6
Cooling Water SystemMain pipe pressurekg/cm²3-5
Inlet sizemmDN80
Mould inlet/1inch*8pcs
Temperature45-55
Vacuum SystemVacuum inlet sizemmDN80
Drainage sizemmDN65
Temperature20-30
Drainage SystemOutlet sizemmDN150
Mould outlet/1.5inch*8pcs
Hydraulic SystemHydraulic motorkw7.5
Max. lock pressureT36
Oil box volumL340
Hopper SystemHopper volumeL420
Refiiling blowerkw2.2
Outlet quantitypcs66
Demould SystemDemould type/Hydraulic
Demould frame/Shutters
Foundation highmm1600
Cycle times/cycle70---130
Installed powerkw17.2
Overall dimension(L×W×H)m5.2×3.2×3.6
Weightkg10000









Company


Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry",  a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.

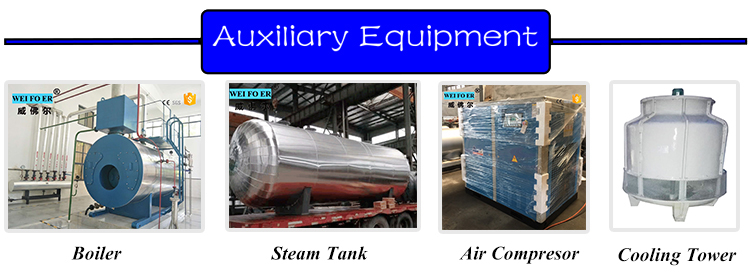

Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

workshop show


Packaging & Shipping


Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

Loading case




We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
