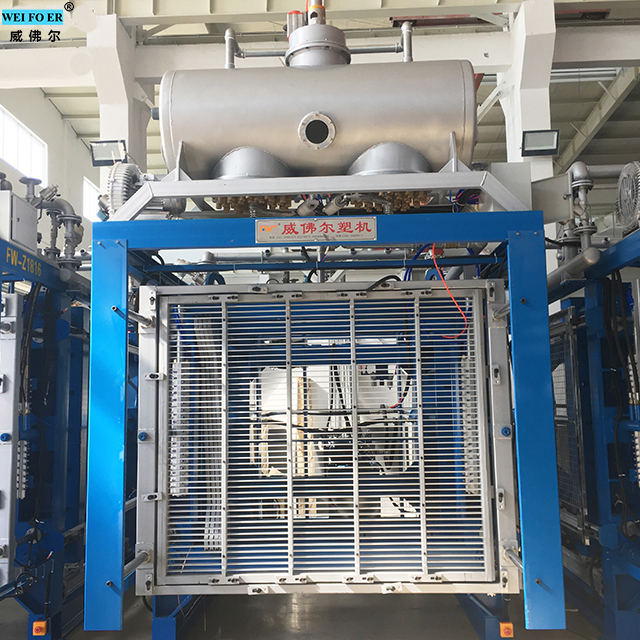

eps styrofoam insulated cooler container box molding moulding machine

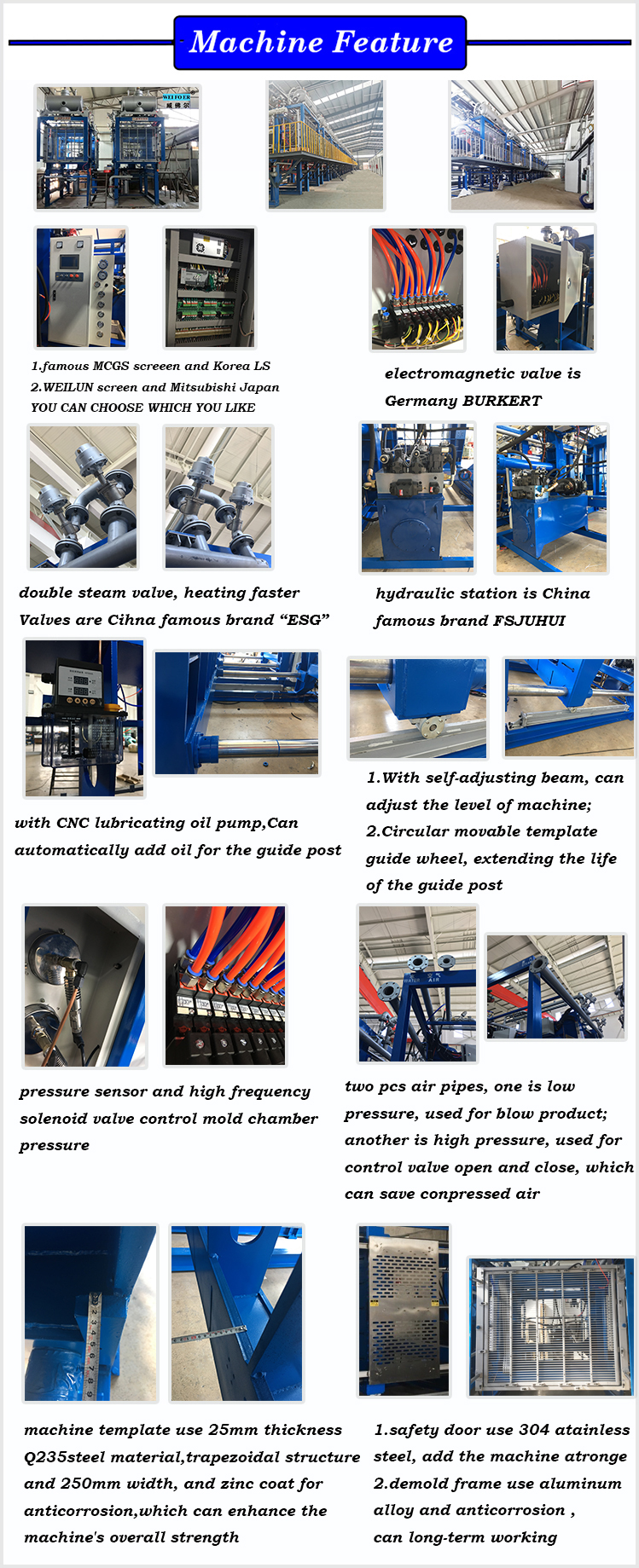

Main Features:

1、with reduce pressure valve;

2、Double steam valves;

3、Pressure sensor and high frequency solenoid valve control the mould chamber pressure;

4、With material position rotary switch

Model:FW-Z1816F Brand: WEIFOERProduct Description

Product Description

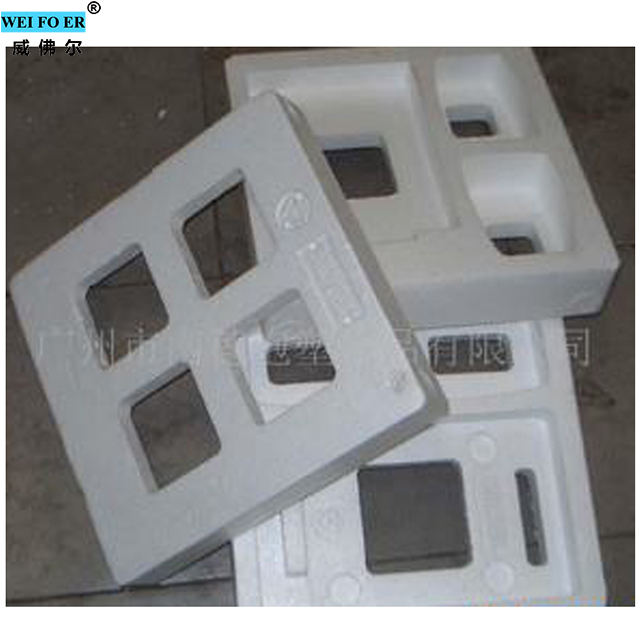

This machine adopts PLC and color touch screen, and adopts advanced molding technology to produce various shapes eps products, like fish box, fruit box, vegetable box, packaging for TV/refrigor/washing machine, seedling tray and so on. The vacuum system and hydraulic system can increase the molding speed and reduce the water cooling time, making the foam product lowest moisture content.

Subjects		Unit	FW-Z1513F	FW-Z1715F	FW-Z1816F
mould size		mm	1500×1300	1750×1550	1850×1600
Max. foam product size		mm	1350×1130×400	1580×1380×400	1680×1430×400
Rear window size		mm	1350×1150	1600×1400	1700×1450
Steam system	Main pipe pressure	bar	5-6	5-6	5-6
	Inlet size	mm	DN80	DN100	DN100
	Mould inlet	/	1.5 inch*6pcs	1.5 inch*8pcs	1.5 inchi*8pcs
	Control type	/	Angle valves	Angle valves	Angle valves
Air System	Main pipe pressure	bar	5-6	5-6	5-6
Air System	Inlet size	mm	DN80*2pcs	DN80*2pcs	DN80*2pcs
Cooling Water Systerm	Main pipe pressure	bar	3-5	3-5	3-5
	Inlet size	mm	DN80	DN80	DN80
	Mould inlet	/	1inch*6pcs	1inch*8pcs	1inch*8pcs
	Temperature	℃	45-55	45-55	45-55
Vacuum system	Vacuum motor	kw	5.5	7.5	7.5
	Vacuum inlet size	mm	DN80	DN80	DN80
	Temperature	℃	20-30	20-30	20-30
Drainage Systerm	Outlet size	mm	DN150	DN150	DN150
Drainage Systerm	Mould outlet	/	1.5inch*6pcs	1.5inch*8pcs	1.5inch*8pcs
Hydraulic System	Hydraulic motor	kw	5.5	7.5	7.5
	Max. lock pressure	T	22	36	36
	Oil box volum	L	290	340	340

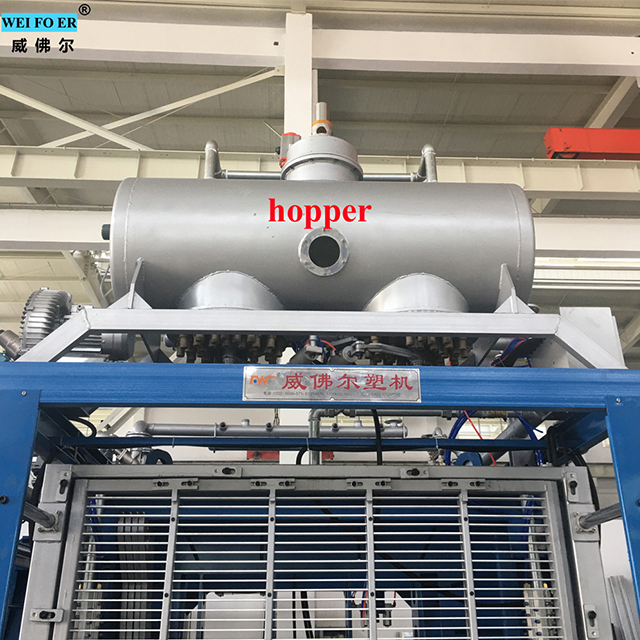

Hopper System	Hopper volume	L	300	420	420
	Material position control	/	Material position control	material position control	material position control
	Refilling blower	kw	1.5	2.2	2.2
	Oulet quantity	pcs	44	66	66
Demould System	Demould type	/	Hydraulic	Hydraulic	Hydraulic
Demould System	Demould frame	/	Shutters	Shutters	Shutters
Chamber pressure control	Pressure sensor	/	Pressure sensor	Pressure sensor	Pressure sensor
Cycle Time		s/cycle	55-95	60-120	60-125
Installed power		Kw	12.5	17.2	17.2
Overall dimension(L×W×H)		m	5.0×2.3×3.2	5.0×2.6×3.4	5.0×2.7×3.6
Weight		kg	6500	7500	8000

Company

Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry", a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.

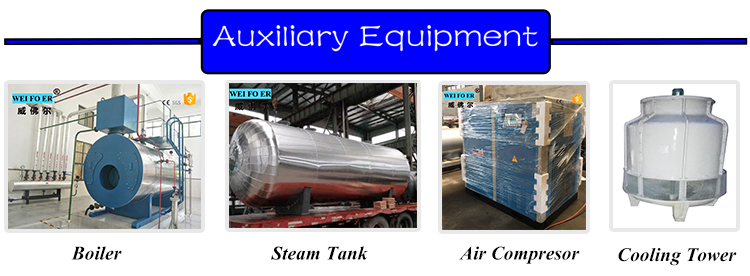

Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

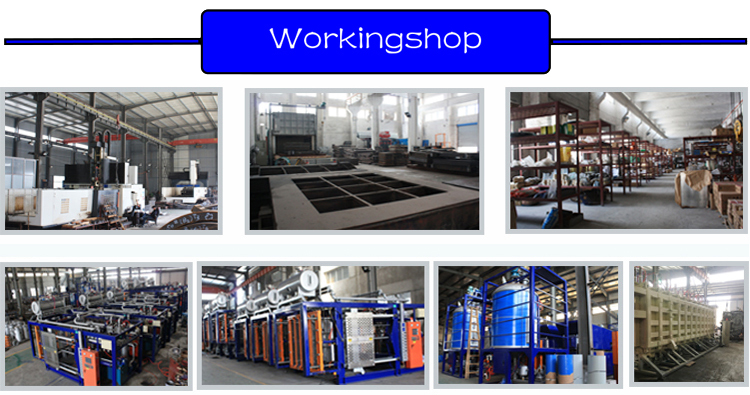

workshop show

Packaging & Shipping

Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

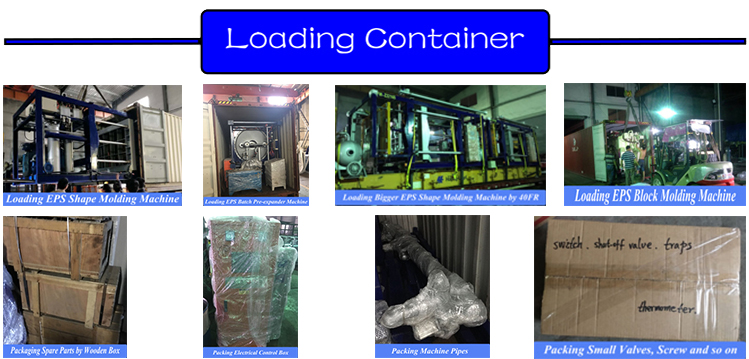

Loading case

We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
