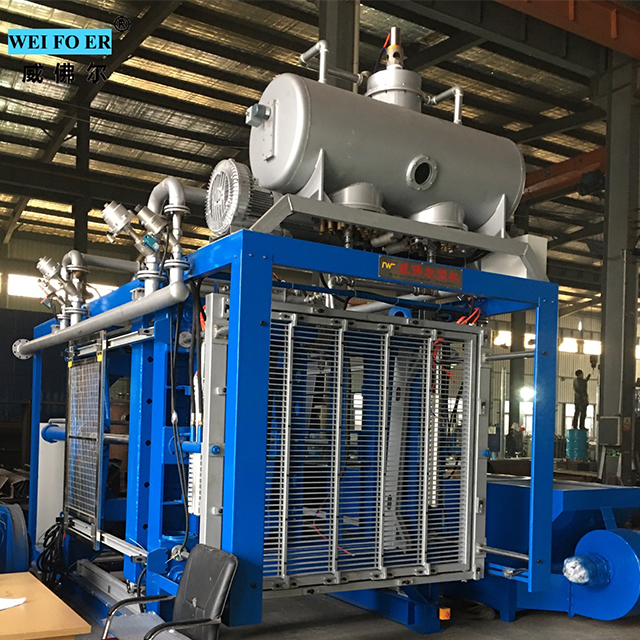

eps foam fresh produce packaging moulding machine

Introduction to machine function:

This machine adopts PLC and color touch screen, and adopts advanced molding technology to produce various shapes eps products, like fish box, fruit box, vegetable box, packaging for TV/refrigor/washing machine, seedling tray and so on. The vacuum system and hydraulic system can increase the molding speed and reduce the water cooling time, making the foam product lowest moisture content.

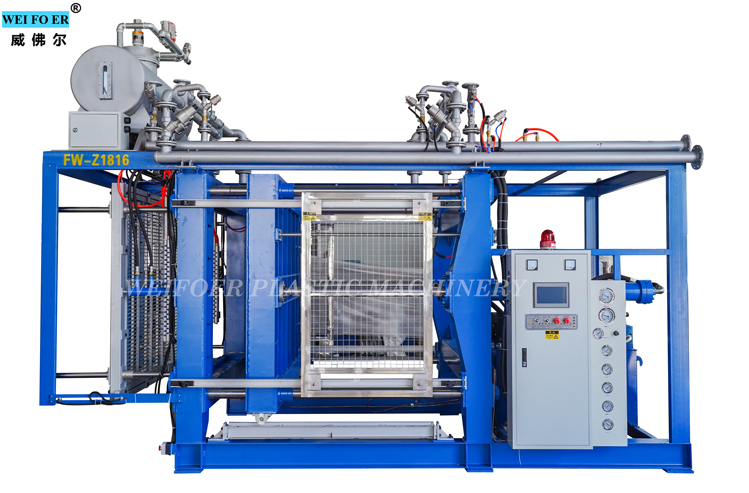

  • Model:FW-Z1816S                                  Brand:WEIFOERProduct Description

Product Description






This machine adopts PLC and color touch screen, and adopts advanced molding technology to produce various shapes eps products, like fish box, fruit box, vegetable box, packaging for TV/refrigor/washing machine, seedling tray and so on. The vacuum system and hydraulic system can increase the molding speed and reduce the water cooling time, making the foam product lowest moisture content.


SubjectsUnitFW-Z1513SFW-Z1715SFW-Z1816S
mould sizemm1500×13001750×15501850×1600
Max. foam product sizemm1350×1130×4001580×1380×4001680×1430×400
Rear window sizemm1350×11501600×14001700×1450

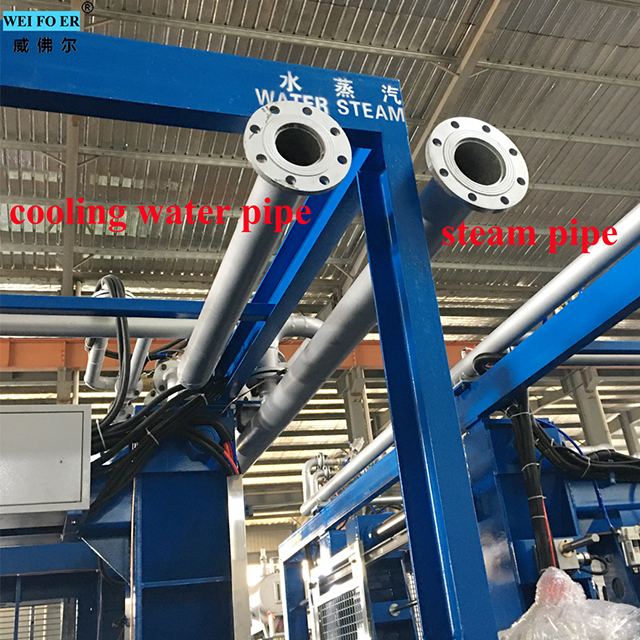

Steam systemMain pipe pressurebar5-65-65-6
Inlet sizemmDN80DN100DN100
Mould inlet/1.5 inch*6pcs1.5 inch*8pcs1.5inch*8pcs
Control type/Angle valveAngle valveAngle valve

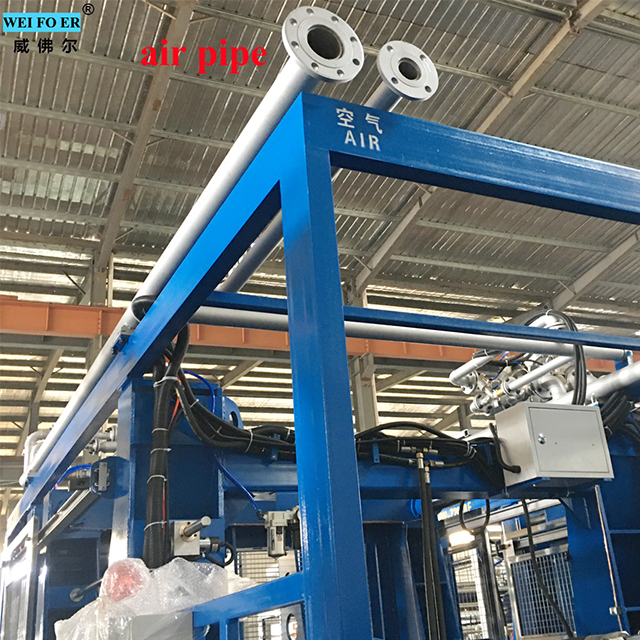

Air SystemMain pipe pressurebar5-65-65-6
Inlet sizemmDN80*2pcsDN80*2pcsDN80*2pcs
Cooling Water SystermMain pipe pressurebar3-53-53-5
Inlet sizemmDN80DN80DN80
Mould inlet/1inch*6pcs1inch*8pcs1inch*8pcs
Temperature

45-5545-5545-55
Vacuum systemVacuum motorkw5.57.57.5
Vacuum inlet sizemmDN80DN80DN80
Drainage sizemmDN65DN65DN65
Vacuum cooling pipe sizemmDN15DN15DN15
Temperature20-3020-3020-30
Drainage SystermOutlet sizemmDN150DN150DN150
Mould outlet/1.5inch*6pcs1.5inch*8pcs1.5inch*8pcs
Hydraulic SystemHydraulic motorkw5.57.57.5
Max. lock pressureT223636
Oil box volumL290340340
Hopper SystemHopper volumeL300420420
Refilling blowerkw1.52.22.2
Oulet  quantitypcs446666
Cycle Times/cycle55-11070-14070-150
Installed powerKw12.517.217.2
Overall dimension(L×W×H)m5.0×2.3×3.25.0×2.6×3.45.0×2.7×3.5
Weightkg600070007500







Company


Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry",  a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.

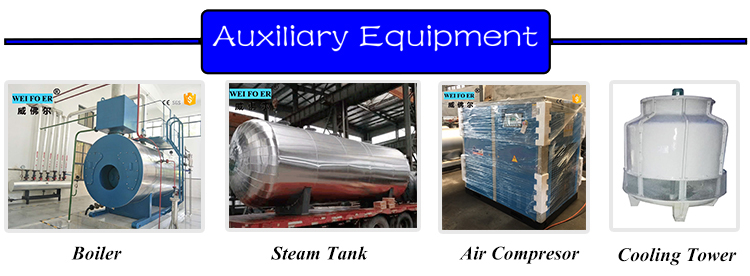

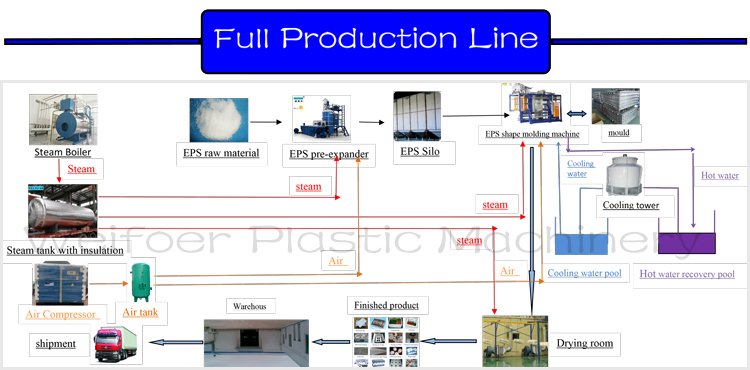

Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

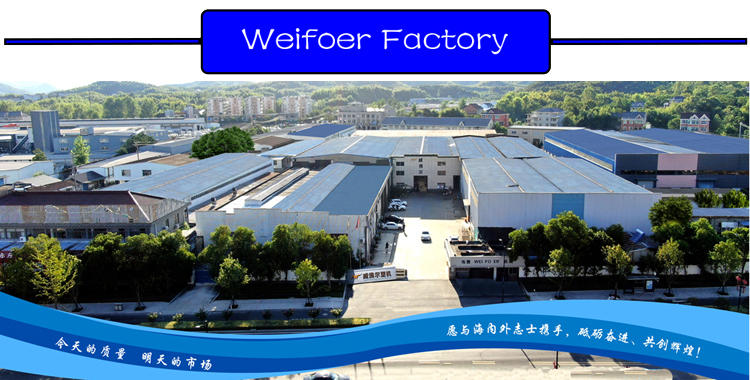

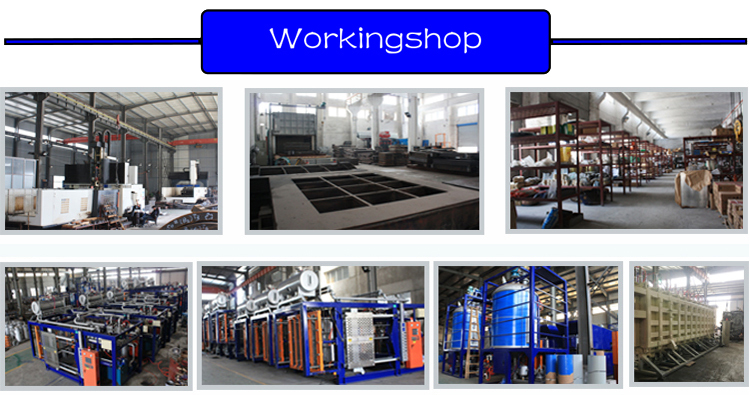

workshop show


Packaging & Shipping


Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

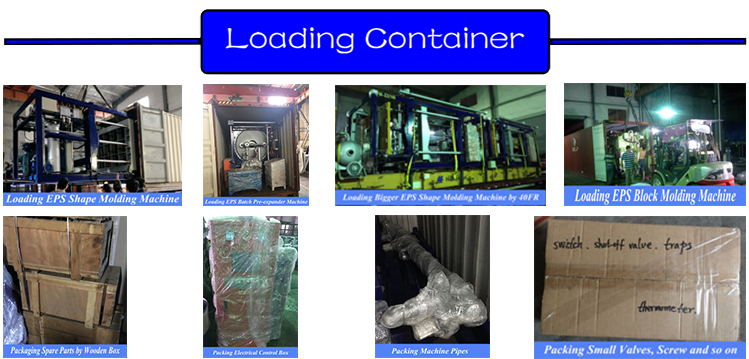

Loading case




We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
