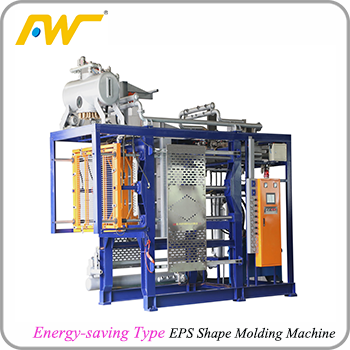

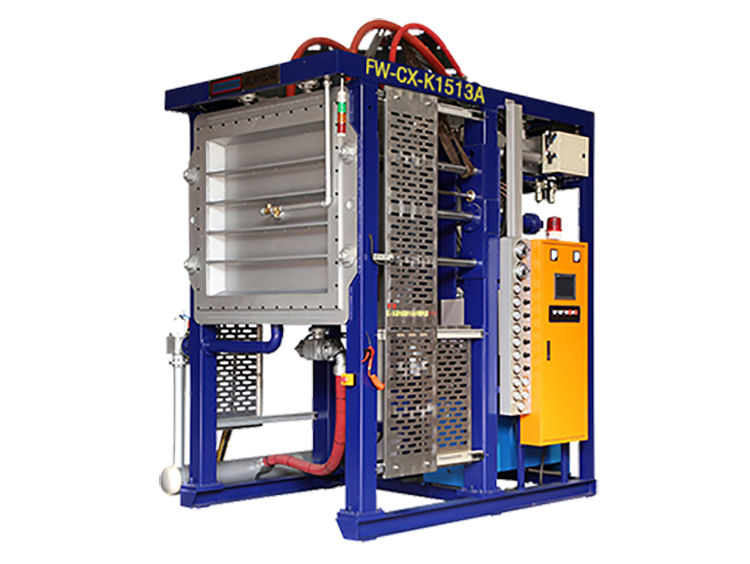

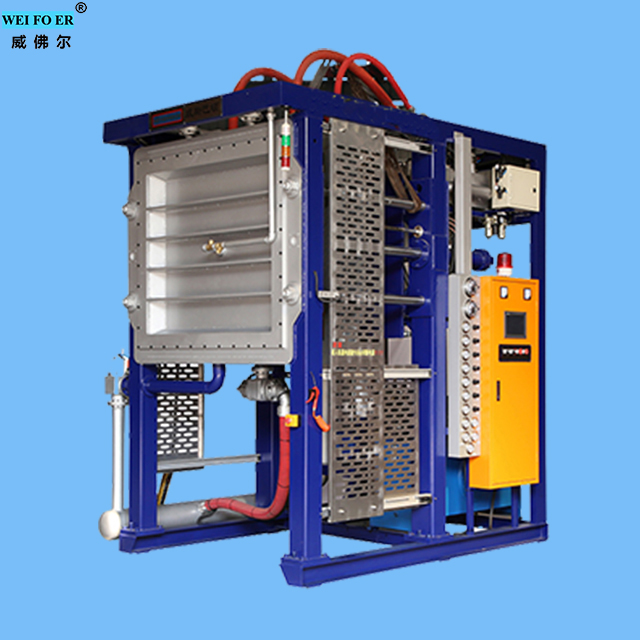

Automatic eps styrofoam thermocol packaging board molding machine

Main Feature:

1. automatic computer control system,color touch screen control, easy to operate;

2. The molded foam product has low moisture content, low energy consumption, short production cycle and stable product size ;

3. The equipment comes with a steam chamber, only need to install the mold core, which greatly reduces the cost of the mold, at the same time, the air tightness is better, the molding is faster, and the energy consumption is lower;

4. Adopt advanced multi-cylinder hydraulic clamping system, fast clamping speed and strong clamping force;

5. Adopting high-efficiency vacuum cooling with spray nozzle and independent drainage system, greatly shortening the vacuum time;

6.Pressure feeding, advanced sensors control the volume and density


Poduct Description











SubjectsUnitFW-CX-K680FW-CX-K810FW-CX-K1513
Outline of mouldmm990×7901190×9901510×1340
Max. product sizemm600×800×1301000×800×1301320×1150×130
   Steam system Steam inlet size mm DN80 DN80 DN100
 Mold inlet size mm DN40  DN40  DN40
 Inlet pressurekg/cm²  3-6 3-6 3-6
 Consumption kg/cycle 2-3.5 2-3.5 2-3.5
Cooling water    Water inlet size mm DN80 DN80 DN80
 Mold inlet mm DN25 DN25 DN25
 Inlet pressure kg/cm² 3-4 3-4 3-4
Consumptionkg/cycle15-3015-3015-30
Cooling temperature°C40-5040-5040-50
Compressed airInlet sizemmDN80DN80DN80
Consumptionm³/cycle0.015-0.0200.015-0.0200.015-0.020
Inlet pressurekg/cm²4-54-54-5
Vacuum condenserSteam inlet sizemmDN25DN25DN25
Inlet pressurekg/cm²1.5-3.01.5-3.01.5-3.0
Consumptionkg/cycle10-2010-2010-30
Temperature°C25-3525-3525-35
Cycle times/cycle38-5538-6038-60
Drainage pipemmDN80DN100DN100
Installed powerkw12.512.512.5
Overall dimension(L*W*H)mm2810×1810×30502810×2010×32502810×2330×3600
Weightkg550060006500




main feacture.png










Company


Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry",  a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.

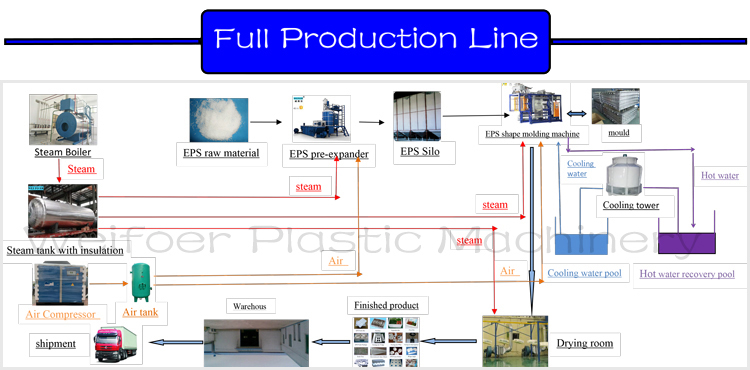

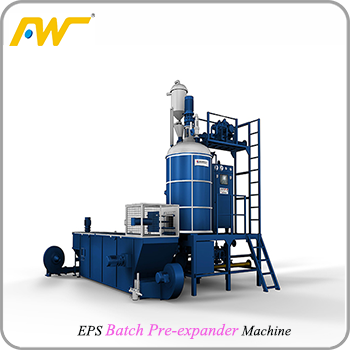

Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

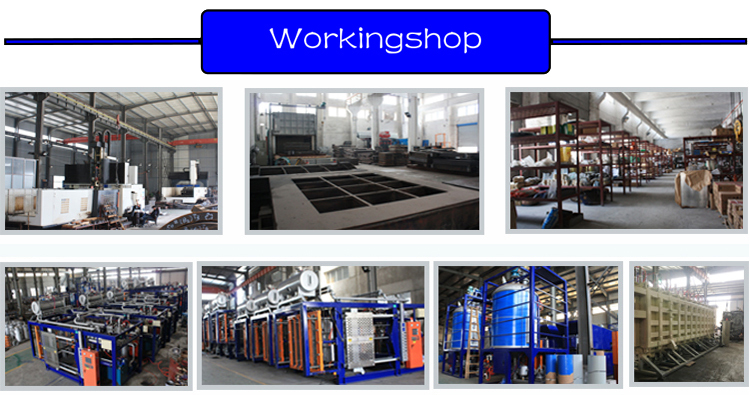

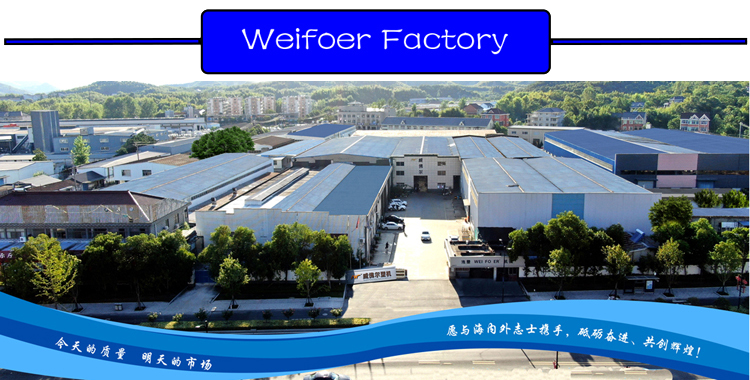

workshop show


Packaging & Shipping


Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

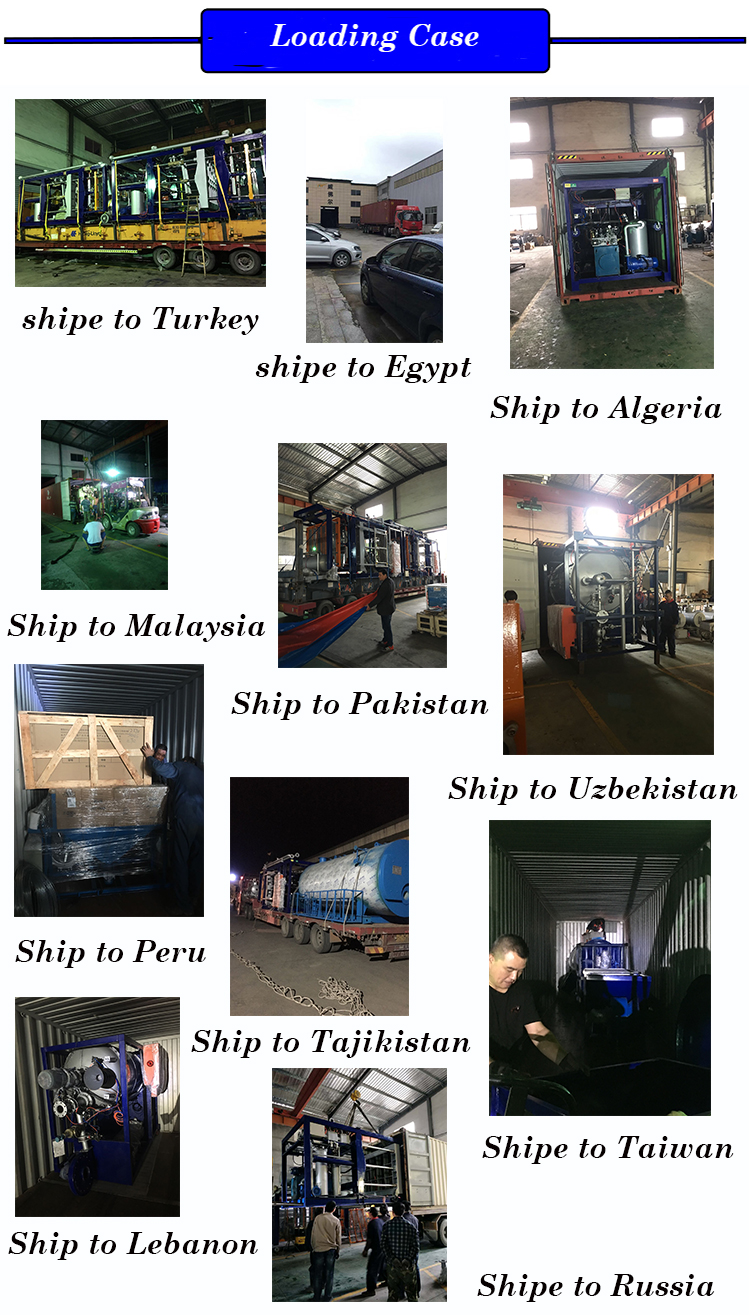

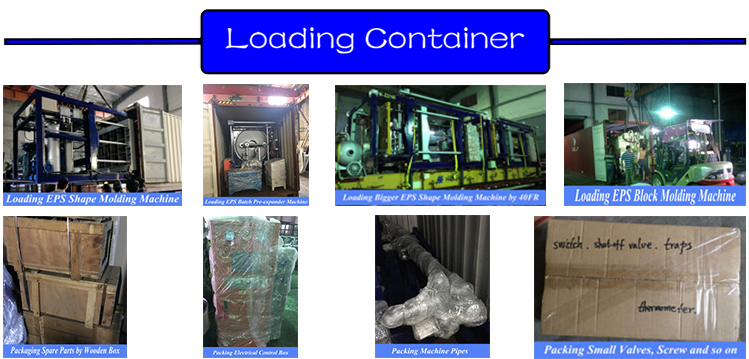

Loading case




We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
