Hangzhou Fuyang Weifoer Plastic Machinery Co., Ltd

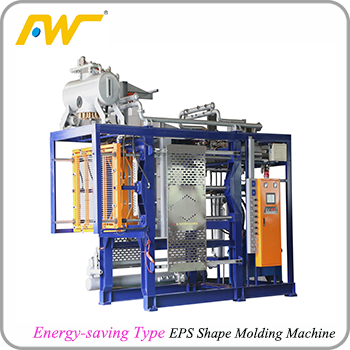

Automatic eps styrofoam shape moulding machine for small packaging

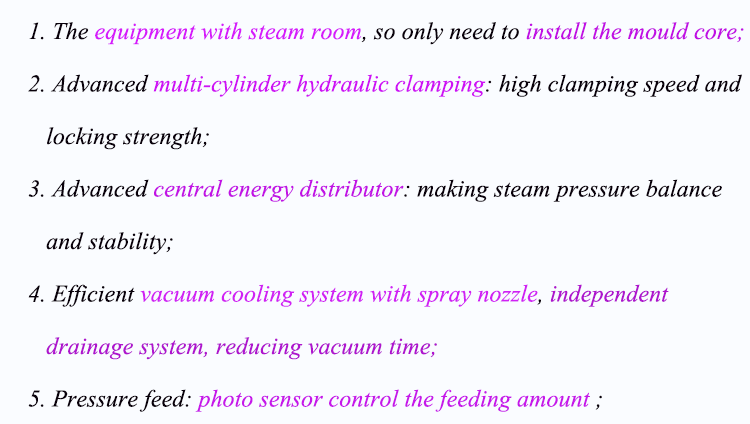

Main Feature:

1. automatic computer control system,color touch screen control, easy to operate;

2. The molded foam product has low moisture content, low energy consumption, short production cycle and stable product size ;

3. The equipment comes with a steam chamber, only need to install the mold core, which greatly reduces the cost of the mold, at the same time, the air tightness is better, the molding is faster, and the energy consumption is lower;

4. Adopt advanced multi-cylinder hydraulic clamping system, fast clamping speed and strong clamping force;

5. Adopting high-efficiency vacuum cooling with spray nozzle and independent drainage system, greatly shortening the vacuum time;

6.Pressure feeding, advanced sensors control the volume and density

Model:FW-ZK810 Brand:WEIFOERProduct Description
Product Description

Subjects		Unit	FW-CX-K680	FW-CX-K810	FW-CX-K1513
Outline of mould		mm	990×790	1190×990	1510×1340
Max. product size		mm	600×800×130	1000×800×130	1320×1150×130
Steam system	Steam inlet size	mm	DN80	DN80	DN100
	Mold inlet size	mm	DN40	DN40	DN40
	Inlet pressure	kg/cm²	3-6	3-6	3-6
	Consumption	kg/cycle	2-3.5	2-3.5	2-3.5
Cooling water	Water inlet size	mm	DN80	DN80	DN80
	Mold inlet	mm	DN25	DN25	DN25
	Inlet pressure	kg/cm²	3-4	3-4	3-4
	Consumption	kg/cycle	15-30	15-30	15-30
	Cooling temperature	°C	40-50	40-50	40-50
Compressed air	Inlet size	mm	DN80	DN80	DN80
	Consumption	m³/cycle	0.015-0.020	0.015-0.020	0.015-0.020
	Inlet pressure	kg/cm²	4-5	4-5	4-5
Vacuum condenser	Steam inlet size	mm	DN25	DN25	DN25
	Inlet pressure	kg/cm²	1.5-3.0	1.5-3.0	1.5-3.0
	Consumption	kg/cycle	10-20	10-20	10-30
	Temperature	°C	25-35	25-35	25-35
Cycle time		s/cycle	38-55	38-60	38-60
Drainage pipe		mm	DN80	DN100	DN100
Installed power		kw	12.5	12.5	12.5
Overall dimension(LWH)		mm	2810×1810×3050	2810×2010×3250	2810×2330×3600
Weight		kg	5500	6000	6500

Company

Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry", a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.

Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

workshop show

Packaging & Shipping

Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint

Loading case

We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
